Precision Beam Control with Collimation Lens from Hyperion Optics

In advanced optical systems, maintaining a well-collimated beam is essential for applications ranging from laser processing to telecommunications. Collimation lens serve a critical role in transforming divergent light into parallel rays, optimizing system performance across multiple industries. At Hyperion Optics, we design and manufacture high-precision collimation lens for UV, visible, and NIR applications, ensuring superior optical clarity, minimal aberration, and long-term reliability in demanding environments.

What Are Collimation lens and How Do They Work?

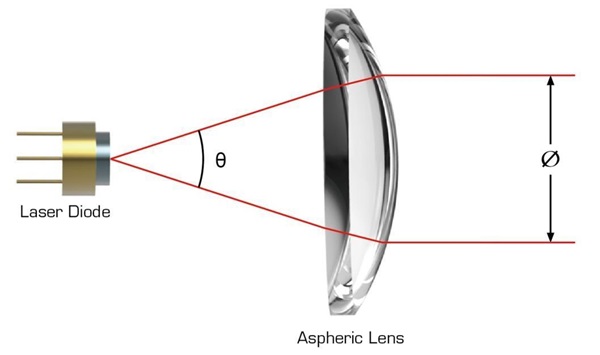

Collimation lens are specialized optical components that convert diverging light into a collimated (parallel) beam. These lenses are widely used in laser systems, fiber optics, and imaging applications where beam alignment and uniformity are crucial. Whether integrated into laser diode modules, LiDAR systems, or spectroscopic instruments, properly collimated light ensures accurate measurements and efficient energy transfer. Hyperion Optics provides custom and off-the-shelf collimation lens tailored for wavelengths from deep UV to short-wave infrared (SWIR), featuring anti-reflective coatings for enhanced transmission efficiency.

Collimation lens vs. Focusing Lenses

While both collimation lens and focusing lenses manipulate light, they serve fundamentally different purposes. A collimation lens takes a point light source and creates a parallel beam, whereas a focusing lens converges light to a single spot. This distinction makes collimation lens ideal for applications like free-space optical communication and beam expanders, where maintaining a uniform light path is essential. In contrast, focusing lenses are better suited for tasks requiring concentrated energy, such as laser cutting or microscopy. Hyperion Optics offers both optical solutions, allowing customers to select the optimal lens for their specific beam-shaping needs.

Applications of Collimation lens in Modern Optical Systems

From telecommunications to medical devices, collimation lens enhance performance in various high-tech fields. In fiber-optic communications, they optimize signal coupling between optical fibers and detectors. Laser-based 3D scanning relies on collimated beams for accurate distance measurement, while biomedical instruments use them to ensure consistent illumination in diagnostic devices. Additionally, industrial laser marking systems achieve precise patterning thanks to well-collimated beams, reducing energy loss and improving marking resolution. Hyperion Optics supports these applications with custom-designed collimation lens that meet strict tolerances for alignment and wavefront distortion.

Advantages of Using High-Quality Collimation lens

The performance of an optical system heavily depends on the precision of its collimation lens. Poorly designed collimators can lead to beam divergence, reduced efficiency, and alignment errors. Hyperion Optics’ lenses mitigate these issues by employing low-dispersion materials and precision polishing, ensuring minimal wavefront distortion across a wide spectrum. Additionally, anti-reflective coatings enhance transmission, reducing energy loss in high-power laser setups. Our lenses also exhibit excellent thermal stability, making them suitable for applications exposed to fluctuating temperatures, such as defense-grade LiDAR and aerospace instrumentation.

Selecting the Right Collimation lens for Your Optical Setup

Choosing the optimal collimation lens requires evaluating several key factors, including focal length, diameter, coating type, and material compatibility. For UV applications, lenses made from fused silica provide better durability, while NIR-optimized coatings maximize efficiency in telecommunications. Hyperion Optics' engineering team works closely with clients to refine optical designs through Design for Manufacturing (DFM) principles, ensuring cost-effective production without compromising performance. Whether for prototyping or high-volume production, our lenses meet rigorous industry standards for precision and reliability.

Why Partner with Hyperion Optics for Collimation lens?

With 17+ years of experience and a track record of delivering 80+ annual projects, Hyperion Optics combines advanced optical engineering with cost-efficient manufacturing. Our collimation lens are trusted worldwide in defense, medical, industrial, and research applications, ensuring repeatable performance in critical systems. From initial design consultation to full-scale production, we support clients with tailored solutions that maximize optical efficiency.
