Achromatic Cylindrical Lenses: Optimizing Optical Performance

In the world of precision optics, Achromatic Cylindrical Lenses play a crucial role in correcting chromatic aberrations while maintaining optimal beam shaping in one dimension. Hyperion Optics, a leading photonics solutions provider, specializes in manufacturing high-performance Achromatic Cylindrical Lenses for UV, visible, and NIR applications. With 17+ years of experience and 80+ projects annually, Hyperion Optics combines advanced Design for Manufacturing (DFM) expertise with cost-effective production to deliver superior optical components for industries such as defense, biophotonics, industrial lasers, and research.

What Are Achromatic Cylindrical Lenses?

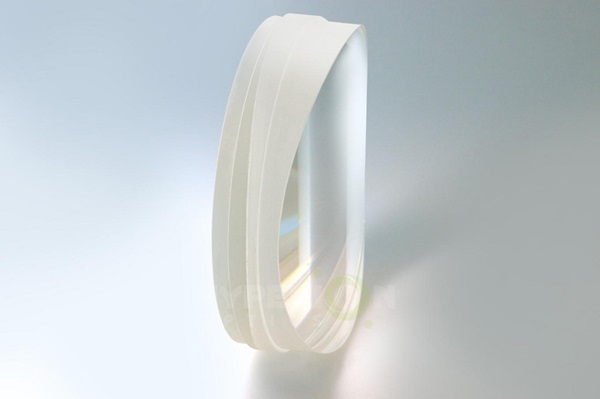

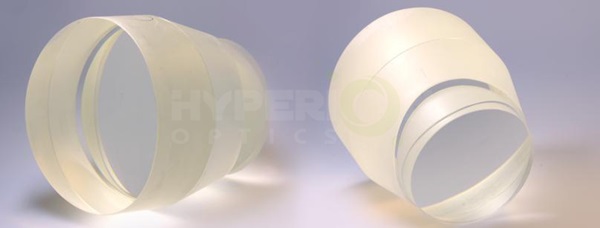

Achromatic Cylindrical Lenses are specialized optical components designed to focus or collimate light in a single axis while minimizing chromatic aberration. Unlike spherical lenses, which affect light symmetrically, cylindrical lenses only bend light along one plane, making them ideal for line generation and laser beam shaping. Hyperion Optics' Achromatic Cylindrical Lenses incorporate multiple glass elements to correct wavelength-dependent dispersion, ensuring sharper imaging and higher precision in applications requiring monochromatic or polychromatic light control.

Achromatic vs. Standard Cylindrical Lenses

The primary distinction between Achromatic Cylindrical Lenses and conventional single-element cylindrical lenses lies in their ability to reduce chromatic distortion. Below is a comparison of their key properties:

By utilizing Hyperion Optics' Achromatic Cylindrical Lenses, engineers and researchers can achieve superior optical performance in systems where precision and multi-wavelength correction are critical.

Applications of Achromatic Cylindrical Lenses in Modern Optics

From laser scanning systems to spectroscopy, Achromatic Cylindrical Lenses enhance performance in diverse optical setups. In biomedical imaging, they improve resolution in line-scanning microscopes, while in industrial laser processing, they enable precise beam shaping for material cutting and engraving. Hyperion Optics provides custom solutions for defense applications, including infrared surveillance and laser targeting systems, where minimizing chromatic dispersion is essential for accuracy in variable lighting conditions.

Key Advantages of Using Achromatic Cylindrical Lenses in Laser Systems

Laser applications demand high precision, and chromatic aberration can degrade beam quality, particularly in fiber coupling, laser diode collimation, and optical coherence tomography (OCT). Hyperion Optics’ Achromatic Cylindrical Lenses mitigate these issues, delivering tighter focus spots, reduced thermal lensing effects, and improved efficiency in UV to NIR laser systems. Their multi-element design ensures consistent performance across wavelengths, making them indispensable for high-power laser diode arrays and telecom wavelength division multiplexing (WDM).

How to Select the Right Achromatic Cylindrical Lens for Your Project

Choosing the optimal Achromatic Cylindrical Lens involves evaluating focal length, material compatibility (e.g., fused silica for UV resistance), diameter, and coating options (anti-reflective for maximum transmission). For custom applications, Hyperion Optics’ engineering team assists in DFM optimization, ensuring manufacturability without compromising optical specifications. Whether for prototyping or volume production, their cost-effective solutions align with project budgets while maintaining stringent quality standards.

With expertise spanning defense, medical, and industrial optics, Hyperion Optics stands out among optical manufacturers by offering technical consultation, multilingual support, and end-to-end production capabilities. Their Achromatic Cylindrical Lenses represent a fusion of advanced optical design and practical engineering, empowering customers to achieve higher clarity, efficiency, and competitive advantage.
